Атрибуты продукта

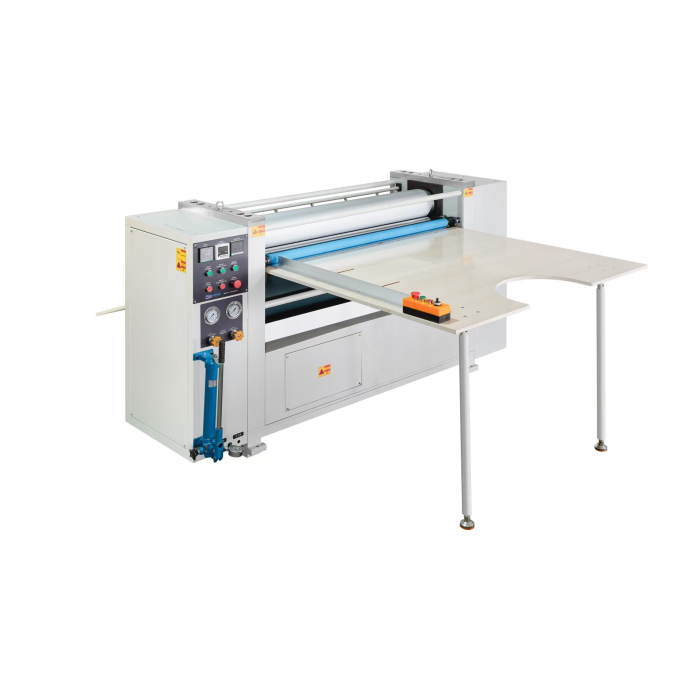

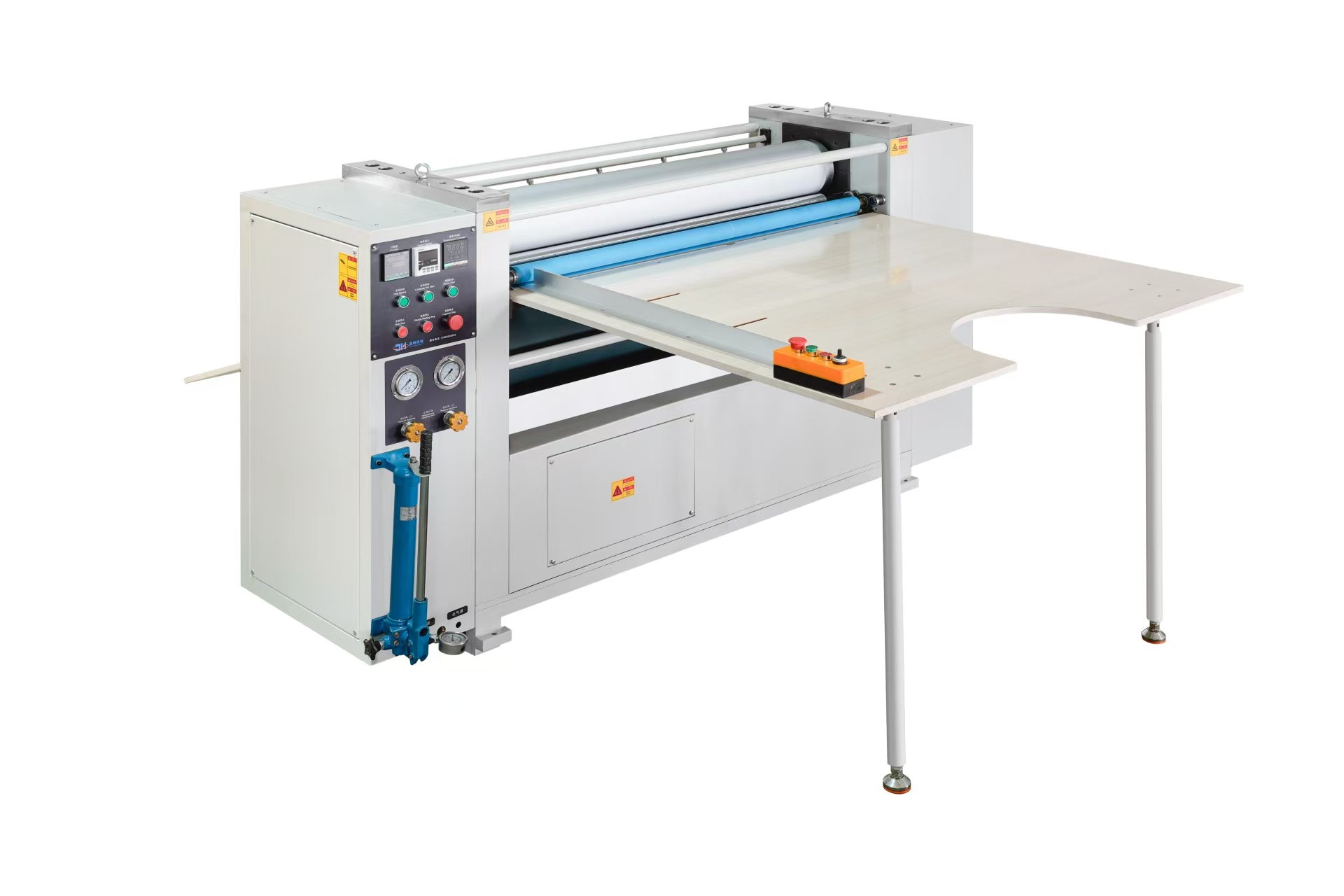

Модель: SRY-EM-1050-1500
Описание продукта
|
Configuration item |
Specification |
|
Equipment name |
Embossing machine |
|
Machine model |
SRY-EM-1100 |
|
Min width of embossing |
300mm |
|
Max width of embossing |
1050mm |
|
Max width of paper |
1100mm |
|
Pressing Method |
Manual Pressing |
|
Paper thickness |
125-650g/㎡ |
|
Speed |
0-60 M/min |
|
Power |
15kw |
|
Voltage: |
Three-phase five-wire system, AC 380V |
|
External size |
3400 mmx2100mmx1400mm |
|
Weight |
2100kg |
|
Equipment installation altitude |
<1000M |
|
Ambient Temperature |
5-40°C |
|
Control Cabinet Operating Temperature |
10-40°C |
|
Maximum Voltage Fluctuation |
-10%~+5% |
|
Frequency |
50HZ (China) |
|
Air Source Requirements |
Compressed Air, oil-free, dry and filtered. |
|
Air Source Pressure |
0.7MPA-0.1MPA |
|
Air Pipe Connector |
1 piece (8*10mm). |
